- APU 氣動密封件-NOK 密封件 小提示：CTRL+F 可直接查到規(guī)格
訂購致電:0755-28545652 手機(jī):13602589346

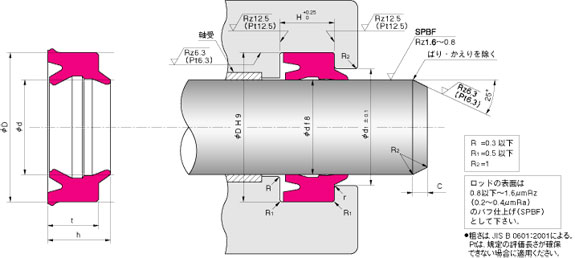

| 密封件公稱尺寸 |
腔體尺寸 |
NOK零件號 |
| d |
D |
t |
h |
φd |
φD |
φd1 |
H |
C |
r |
| 8 |
12 |
3.5 |
4.25 |
8 |
12 |
9.6 |
4 |
1.5 |
0.5 |
CQ0264B0 |
| 10 |
14 |
3.5 |
4.25 |
10 |
14 |
11.6 |
4 |
1.5 |
0.5 |
CQ0265B0 |
| 12 |
16 |
3.5 |
4.25 |
12 |
16 |
13.6 |
4 |
1.5 |
0.5 |
CQ0266B0 |
| 14 |
18 |
3.5 |
4.25 |
14 |
18 |
15.6 |
4 |
1.5 |
0.5 |
CQ0289B0 |
| 16 |
24 |
5.5 |
6.9 |
16 |
24 |
19.4 |
6 |
2.0 |
0.6 |
CQ0267B0 |
| 20 |
28 |
5.5 |
6.9 |
20 |
28 |
23.4 |
6 |
2.0 |
0.6 |
CQ0290B0 |
| 25 |
33 |
5.5 |
6.9 |
25 |
33 |
28.4 |
6 |
2.0 |
0.6 |
CQ0291B0 |
| 30 |
40 |
6.5 |
8.2 |
30 |
40 |
34.0 |
7 |
2.5 |
0.8 |
CQ0292B0 |
| 32 |
42 |
6.5 |
8.2 |
32 |
42 |
36.0 |
7 |
2.5 |
0.8 |
CQ0293B0 |
| 35 |
45 |
6.5 |
8.2 |
35 |
45 |
39.0 |
7 |
2.5 |
0.8 |
CQ0294B0 |
| 40 |
50 |
6.5 |
8.2 |
40 |
50 |
44.0 |
7 |
2.5 |
0.8 |
CQ0295B0 |
| 45 |
55 |
6.5 |
8.2 |
45 |
55 |
49.0 |
7 |
2.5 |
0.8 |
CQ0254B0 |
|
