- NMY 活塞桿專用液壓密封件 SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

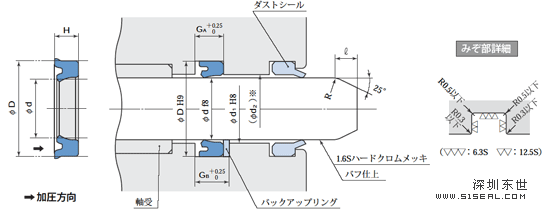

| 型號明細 | 密封件的公稱尺寸及腔體尺寸 (単位：mm） | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| NMY | 配合（PT101） | ||||||||
| 標準（RN 906） | バイアスカットタイプ | エンドレスタイプ | d | D | H | GA | GB | d1(參考) |  |
| *NMY-3 | *T2 P-3 | *T3 P-3 | 3 | 6 | 2.1 | 2.5 | 3.9 | 3.2 | 1.5 |
| *NMY-4 | *T2 P-4 | *T3 P-4 | 4 | 7 | 2.1 | 2.5 | 3.9 | 4.2 | 1.5 |
| *NMY-5 | *T2 P-5 | *T3 P-5 | 5 | 8 | 2.1 | 2.5 | 3.9 | 5.2 | 1.5 |
| *NMY-6 | *T2 P-6 | *T3 P-6 | 6 | 9 | 2.1 | 2.5 | 3.9 | 6.2 | 1.5 |
| *NMY-7 | *T2 P-7 | *T3 P-7 | 7 | 10 | 2.1 | 2.5 | 3.9 | 7.2 | 1.5 |
| *NMY-8 | *T2 P-8 | *T3 P-8 | 8 | 11 | 2.1 | 2.5 | 3.9 | 8.2 | 1.5 |
| *NMY-9 | *T2 P-9 | *T3 P-9 | 9 | 12 | 2.1 | 2.5 | 3.9 | 9.2 | 1.5 |
| *NMY-10 | *T2 P-10 | *T3 P-10 | 10 | 13 | 2.1 | 2.5 | 3.9 | 10.2 | 1.5 |
| *NMY-10A | *T2 P-10A | *T3 P-10A | 10 | 14 | 2.8 | 3.2 | 4.4 | 10.3 | 1.5 |
| *NMY-12 | *T2 P-12 | *T3 P-12 | 12 | 16 | 2.8 | 3.2 | 4.4 | 12.3 | 1.5 |
| *NMY-14 | *T2 P-14 | *T3 P-14 | 14 | 18 | 2.8 | 3.2 | 4.4 | 14.3 | 1.5 |
| *NMY-15 | *T2 P-15 | *T3 P-15 | 15 | 19 | 2.8 | 3.2 | 4.4 | 15.3 | 1.5 |
| *NMY-16 | *T2 P-16 | *T3 P-16 | 16 | 20 | 2.8 | 3.2 | 4.4 | 16.3 | 1.5 |
| *NMY-18 | *T2 P-18 | *T3 P-18 | 18 | 22 | 2.8 | 3.2 | 4.4 | 18.3 | 1.5 |
| *NMY-20 | *T2 P-20 | *T3 P-20 | 20 | 24 | 2.8 | 3.2 | 4.4 | 20.3 | 1.5 |
| *NMY-25 | *T2 P-25 | *T3 P-25 | 25 | 31 | 4.2 | 4.7 | 6 | 25.3 | 3 |
| *NMY-30 | *T2 P-30 | *T3 P-30 | 30 | 36 | 4.2 | 4.7 | 6 | 30.3 | 3 |
