- SMJ 活塞桿專用液壓密封件 SAKAGAMI 阪上 液壓 密封件 0755-28545652
訂購致電:0755-28545652 手機:13602589346

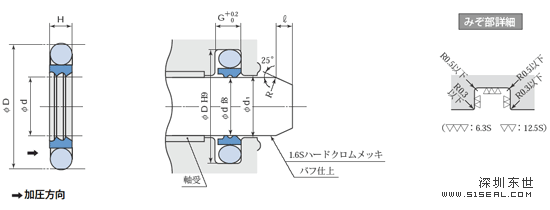

| 型號明細 | 密封件的公稱尺寸及腔體尺寸 (単位：mm） | ||||||
|---|---|---|---|---|---|---|---|
| 標準（PT154） | d | D | H | G | 最大d1 |  |
|
| （21MPa以下） | （35MPa以下） | ||||||
| *SMJ-18 | 18 | 25.3 | 3 | 3.2 | 18.6 | 18.3 | 1.5 |
| *SMJ-20 | 20 | 30.7 | 4 | 4.2 | 20.6 | 20.3 | 2 |
| *SMJ-22 | 22 | 32.7 | 4 | 4.2 | 22.6 | 22.3 | 2 |
| *SMJ-25 | 25 | 35.7 | 4 | 4.2 | 25.6 | 25.3 | 2 |
| *SMJ-28 | 28 | 38.7 | 4 | 4.2 | 28.6 | 28.3 | 2 |
| *SMJ-30 | 30 | 40.7 | 4 | 4.2 | 30.6 | 30.3 | 2 |
| *SMJ-35 | 35 | 45.7 | 4 | 4.2 | 35.6 | 35.3 | 2 |
| *SMJ-36 | 36 | 46.7 | 4 | 4.2 | 36.6 | 36.3 | 2 |
| *SMJ-40 | 40 | 55.1 | 6 | 6.3 | 40.6 | 40.3 | 3 |
| *SMJ-45 | 45 | 60.1 | 6 | 6.3 | 45.6 | 45.3 | 3 |
| *SMJ-50 | 50 | 65.1 | 6 | 6.3 | 50.6 | 50.3 | 3 |
| *SMJ-55 | 55 | 70.1 | 6 | 6.3 | 55.6 | 55.3 | 3 |
| *SMJ-56 | 56 | 71.1 | 6 | 6.3 | 56.6 | 56.3 | 3 |
| *SMJ-60 | 60 | 75.1 | 6 | 6.3 | 60.6 | 60.3 | 3 |
| *SMJ-65 | 65 | 80.1 | 6 | 6.3 | 65.6 | 65.3 | 3 |
| *SMJ-70 | 70 | 85.1 | 6 | 6.3 | 70.6 | 70.3 | 3 |
| *SMJ-75 | 75 | 90.1 | 6 | 6.3 | 75.6 | 75.3 | 3 |
| *SMJ-80 | 80 | 95.1 | 6 | 6.3 | 80.6 | 80.3 | 3 |
| *SMJ-85 | 85 | 100.1 | 6 | 6.3 | 85.6 | 85.3 | 3 |
| *SMJ-90 | 90 | 105.1 | 6 | 6.3 | 90.6 | 90.3 | 3 |
| *SMJ-100 | 100 | 115.1 | 6 | 6.3 | 100.6 | 100.3 | 3 |
| *SMJ-125 | 125 | 140.1 | 6 | 6.3 | 125.6 | 125.3 | 3 |
| *SMJ-140 | 140 | 155.1 | 6 | 6.3 | 140.6 | 140.3 | 3 |
